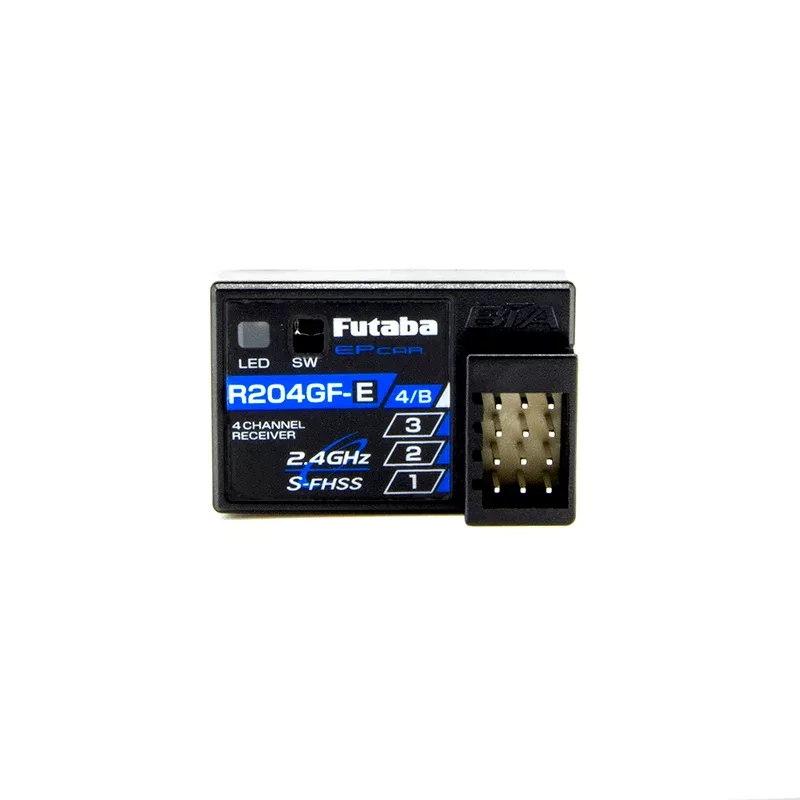

Futaba R204GF-E S-FHSS High Voltage 4-Channel 2.4GHz Micro Receiver

Description

The Futaba R204GF-E High Voltage 2.4GHz S-FHSS 4-Channel Micro Receiver is compatible with Futaba FHSS and S-FHSS transmitters.

NOTE:

• The R204GF-E receiver is recommended for electric powered models only. This is NOT recommended for use with nitro or gas powered models.
• This receiver isNOT compatiblewith 2.4GHz FASST or FASSTest systems. It will work with FHSS and T-FHSS transmitters, but transmitter mode will need to be changed to from T-FHSS/FHSS to S-FHSS mode.

Features:

• Ideally sized for 1/10 and 1/12 scale vehicles including rock crawlers
• Compatible with any Futaba S-FHSS/FHSS system
• S-FHSS mode offers two operation modes: Normal and High Speed responses
• Internal antenna

Specifications:
Operating Voltage:4.8 – 7.4V
Receiving Range:230′ (70m)
Battery Failsafe:3.8V
Current Drain:30Ma (at no signal)
Size:1.38×0.91×0.35″ (35.1×23.2x9mm)
Weight:0.21oz (6g)
Number of Ports:4
PWM Output:3
SBUS Ports:0
SBUS2 Ports:0
FASST:No
Telemetry:No
S-FHSS:Yes
High Speed:Yes
High Voltage:Yes
Connector:J (STND)
Range:Full Range

NOTE:

• The R204GF-E receiver is recommended for electric powered models only. This is NOT recommended for use with nitro or gas powered models.
• This receiver isNOT compatiblewith 2.4GHz FASST or FASSTest systems. It will work with FHSS and T-FHSS transmitters, but transmitter mode will need to be changed to from T-FHSS/FHSS to S-FHSS mode.
