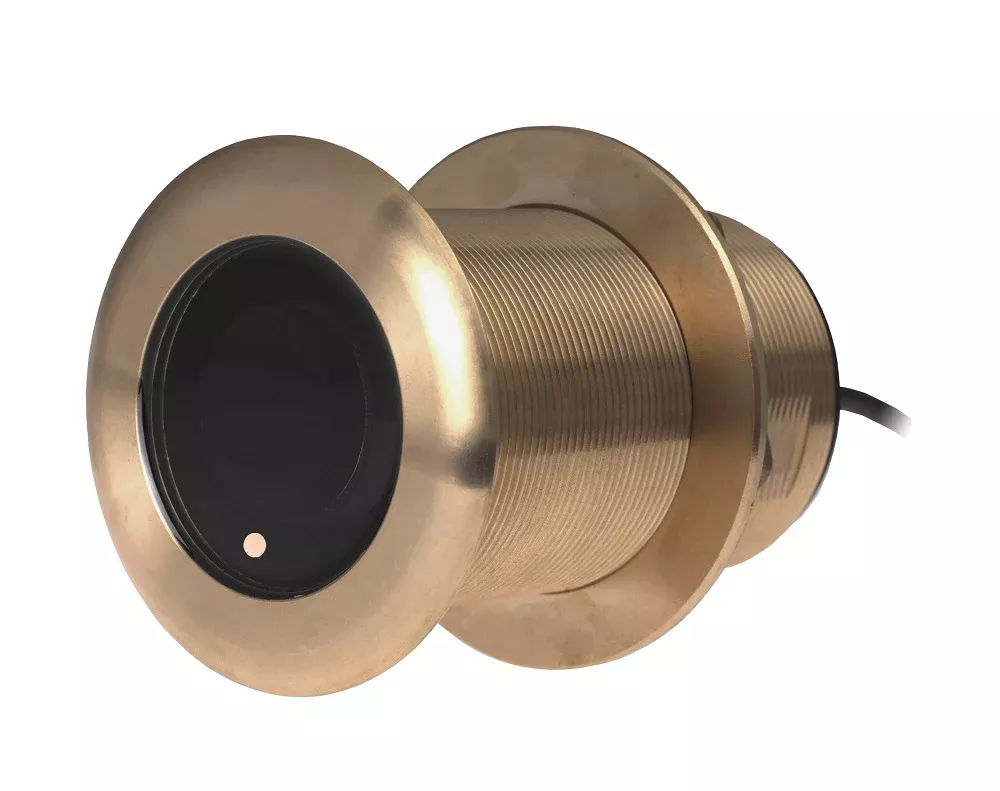

Airmar B75C- 12d Tilt CHIRP With Mix-n-Match Plug.

Description

Airmar B75C-12 Tilt Bronze Thru Hull Series (Medium & Low CHIRP)

The Airmar B75C-12 Tilt transducers are designed for smaller boats up to 8 m (25’) with fiberglass or wood hulls, featuring a durable bronze housing and a fixed 12° element tilt. These transducers compensate for hull deadrise angles from 8° to 16°, orienting the sonar beam directly downward for maximum accuracy and echo returns. Their low-profile design ensures excellent performance at boat speeds and high-resolution sonar images.

Available in Medium and Low CHIRP frequency bands, these transducers provide outstanding bottom detail and fish separation, ideal for commercial and recreational fishing. Both models include depth and fast-response water-temperature sensors.

Model:

• Airmar B75C-12-M-MM (Medium CHIRP)

• Airmar B75C-12-L-MM (Low CHIRP)

Key Features

• Depth and fast-response water-temperature sensor

• Bronze housing suitable for fiberglass or wood hulls

• Fixed 12° element tilt correcting hull deadrise for direct beam orientation

• Medium CHIRP: 80 to 130 kHz frequency, 24° to 16° beamwidth, 600 W power, max depth 274 m (900’)

• Low CHIRP: 40 to 75 kHz frequency, 32° to 21° beamwidth, 300 W power, max depth 366 m (1200’)

• Covers popular fishing frequencies (e.g., 88, 107 kHz for Medium CHIRP)

• Recommended for stepped, planing, or displacement hulls

• Ideal for high boat speeds with clear, detailed sonar returns

• Exclusive Xducer ID® technology on Medium CHIRP model

Model Comparison

*:not(:first-child)]:border-subtle [&>*:not(:first-child)]:border-l”>

What’s in the Box

B75C-12-M-MM (Medium CHIRP)

• B75C-12-M-MM Transducer

B75C-12-L-MM (Low CHIRP)

• B75C-12-L-MM Transducer
