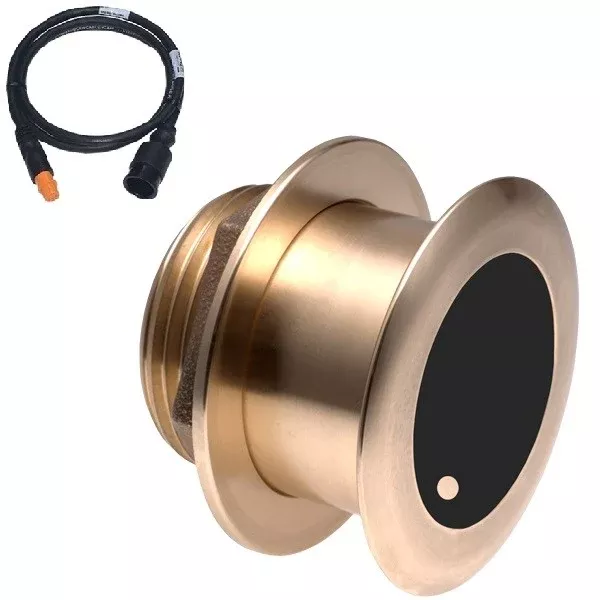

Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Transducer with Garmin Connectors.

Sale!
Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Transducer with Garmin Connectors.

Airmar B175C CHIRP 1kW Medium-Frequency 20° Tilt Transducer with Garmin Connectors.

Original price was: $779.99.Current price is: $532.98.

93 in stock

SKU: AIRB175C20M8G Category:

Description

Airmar B175C CHIRP Medium-Frequency 20° Tilted Element – Garmin 8-Pin or 12-Pin

Product Description:

The Airmar B175C-20-M transducer is engineered for exceptional target separation and detail at medium depths. Operating in the 85–135 kHz CHIRP frequency band with a 20° fixed tilt, this thru-hull model ensures your sonar beam is properly aligned for hulls with 16° to 24° deadrise.

With a bronze housing and wide beam coverage of 24° to 16°, it’s a powerful solution for anglers fishing deeper than high-frequency transducers allow, while still delivering excellent target resolution. Compatible with Garmin 8-pin or 12-pin devices using Mix-n-Match cabling.

Key Features:

Feature Specification
Frequency Range 85–135 kHz (Medium CHIRP)
Beamwidth 24° to 16°
Max Depth Up to 3,000 m (10,000 ft)
Power 1 kW @ 1% duty cycle
Mount Thru-Hull with 20° Tilt
Deadrise 16°–24°
Housing Material Bronze
Hull Type Fiberglass or Wood
Boat Size 8 m (25’) and above
Functions Depth, Temperature
Connector Options Garmin 8-Pin or 12-Pin

What’s in the Box:

  • B175C-20-M-MM Transducer

  • MMC-8G or MMC-12G Garmin Mix-n-Match Cable

Model Numbers:

Connector Type Model Number
Garmin 8-Pin B175C-20-M-8G
Garmin 12-Pin B175C-20-M-12G
